Product Details
Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF2000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export Standard
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 1sets/month
Injection Weight: |
8608~13356 |
Clamp Tonnage: |
20000 |
Toggle Stroke: |
1600 |
Space Between Tie Bars: |
1650*1500 |
Machine Dimension: |
17.80*3.35*4.28 |
Pump Motor Power: |
45+55+55 |
Machine Weight: |
156 |
Injection Weight: |
8608~13356 |
Clamp Tonnage: |
20000 |
Toggle Stroke: |
1600 |
Space Between Tie Bars: |
1650*1500 |
Machine Dimension: |
17.80*3.35*4.28 |
Pump Motor Power: |
45+55+55 |
Machine Weight: |
156 |

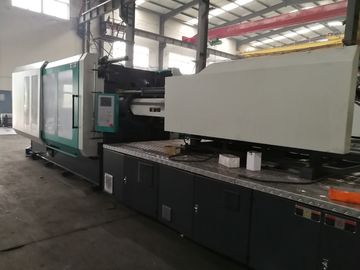

Industrial 2000 Tons Automatic Plastic Injection Molding Machine
Quick Detail:
Industrial Plastic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S.etc.This machine is mainly used to produce middle&big industrial parts, household appliances and other plastic products.
Competitive advantages:
+injection Units
High injection pressure , High injection speed
+HYDRAULIC SYSTEM
Fast respone, stable output
+Electronic Units
intelligent control unit
Main technical parameters
| SPECIFICATION | HJF-2000 | ||||||
| A | B | C |
D
|
||||
| Screw diameter | mm | 130 | 140 | 150 | 160 | ||
| Screw L/D Ratio | L/D | 25.9 | 24 | 22.4 | 20.9 | ||
| Shot size(theoretical) | cm³ | 9460 | 11238 | 12900 | 14678 | ||
| Injection weight(PS) | g | 8608 | 10226 | 11739 | 13356 | ||
| Injection pressure | Mpa | 190 | 163 | 142 | 125 | ||
| Injection rate | g/s | 1172 | 1360 | 1560 | 1776 | ||
| Screw Speed | rpm | 70 | |||||
| Clamp tonnage | KN | 20000 | |||||
| Opening stroke | mm | 1600 | |||||
| Space between the tie bars | mm | 1650*1500 | |||||
| Max.Mold Height | mm | 1620 | |||||
| Min.Mold Height | mm | 800 | |||||
| Ejector stroke | mm | 420 | |||||
| Ejector tonnage | KN | 490 | |||||
| Max.pump pressure | Mpa | 16.5 | |||||
| Pump motor power | KW | 45+55+55 | |||||
| Heater power | KW | 110.7 | |||||
| Machine dimension(L*W*H) | M | 17.80*3.35*4.28 | |||||
| Machine weight | T | 156 | |||||
| Oil tank capacity | L | 3700 | |||||
Characteristics
1. Adopts the imported control components, durable, safe, and low failure rate.
2. Use human-computer interface, simple and more visually oriented.
3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.
4. East to adjust different sizes of cartons, adjust quickly and easily, available for a wide range of cartons.
5. Low power consumption, simple and convenient operation, low noise.
6. Use tap to seal the cartoon bottom, protected from weather, sealing reliable.
Shipping and Payment
| Product Name | 500 Injection molding machine |
| Packing | Export standard package |
| MOQ | 1 set |
| FOB price | Please contact for new price |
| Delivery time | 60days |
| FOB port | Ningbo |
| Payment terms | T/T,L/C at sight |
