Product Details
Place of Origin: China
Brand Name: Haijiang
Certification: ISO9001
Model Number: 3AC-100AC
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export cases
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 50sets/month
Compressor: |
All-closed Vorticity |
Refrigerant: |
R22 |
Cooling Capacity: |
6800~24300 |
Compressor Power: |
2.5~74 |
Compressor: |
All-closed Vorticity |
Refrigerant: |
R22 |
Cooling Capacity: |
6800~24300 |
Compressor Power: |
2.5~74 |
The parameter

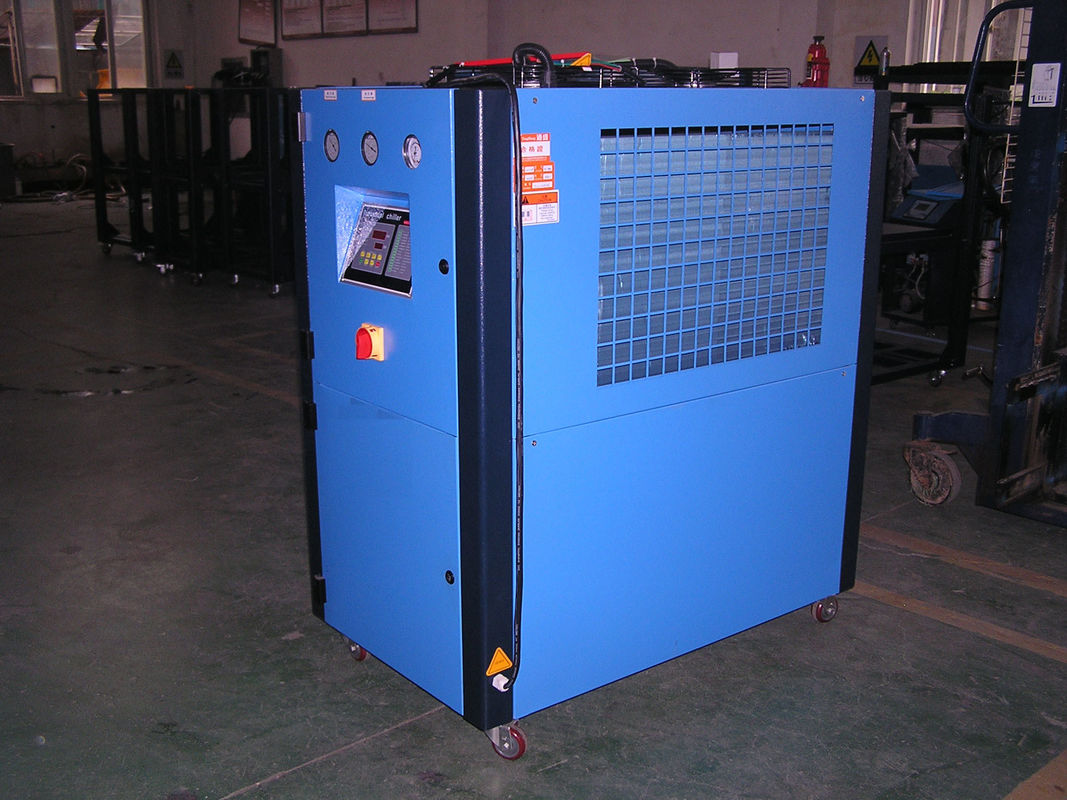

Air Cooled Cased Industrial Chiller(KCM-AC)
Main features:
1, the use of Europe and the United States to import high-quality new design compressor and famous factory pumps, fans, especially quiet, energy-saving and durable.
2, unique new design of the radiator, heat transfer efficiency is good.
3, equipped with stainless steel open sink, easy to clean and repair.
4, equipped with sophisticated electronic temperature controller, can accurately control the temperature within the 3 ℃ to + 20 ℃.
5. The machine is equipped with current overload protection, (high and low voltage suppression and electronic time delay and other safety devices) in case of failure, it will immediately issue an alarm and display the cause of failure.
6. Through industrial modeling design, the appearance is beautiful and the man-machine relationship is optimized.
Industrial chillers are mainly used in plastic industry, but also in electroplating industry, food industry, electronic manufacturing industry, bleaching and dyeing industry, ultrasonic machinery cooling and other aspects.It can precisely control the mold temperature in various plastic processing, shorten the plastic processing cycle, speed up the product forming, so as to improve the product quality, can achieve the product not shrink, not change, increase the transparency of the product and surface finish, the product design is novel, excellent quality, convenient operation.
The parameter
model | KCM-3AC | KCM-5AC | KCM-8AC | KCM-10AC | KCM-12AC | KCM-15AC | KCM-20AC | KCM-25AC | KCM-30AC | KCM-40AC | KCM-50AC | KCM-100AC | |
| Cooling capacity | Kcal/h | 6800 | 12040 | 19000 | 25200 | 34400 | 37000 | 45000 | 54000 | 76600 | 92800 | 113000 | 24300 |
| Compressor | All-closed Vorticity | All-closed Vorticity | All-closed Vorticity | All-closed Vorticity | All-closed Vorticity | All-closed Vorticity | All-closed Vorticity | All-closed Vorticity | All-closed Vorticity | All-closed Vorticity | All-closed Vorticity | Screw | |
| Compressor power | Kw | 2.5 | 4.4 | 7 | 9 | 10.2 | 13.4 | 18 | 20.4 | 26.8 | 35 | 40 | 74 |
| Refrigerant | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | |
Chilled water | Kw | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 7.5 | 7.5 | 8 |
Max flow rate | L/min | 55 | 120 | 120 | 200 | 200 | 400 | 400 | 400 | 400 | 600 | 600 | 900 |
Flow water inlet | 1'' | 1'' | 1.5'' | 1.5'' | 1.5'' | 1.5'' | 2'' | 2'' | 2'' | 3'' | 3'' | 5'' | |
| Chilled fan power | Kw | 0.25 | 0.5 | 0.5 | 0.5 | 0.5 | 1 | 1 | 1.5 | 1.5 | 3.2 | 3.2 | 5 |
| size length | mm | 1030 | 1100 | 1220 | 1220 | 1220 | 1220 | 1700 | 1980 | 1900 | 2000 | 2100 | 3600 |
| size width | mm | 680 | 700 | 800 | 930 | 930 | 1050 | 1100 | 1160 | 1200 | 1200 | 1300 | 1800 |
| size height | mm | 1270 | 1400 | 1450 | 1600 | 1600 | 1600 | 1920 | 1800 | 2000 | 2100 | 2100 | 1800 |
Water tank | L | 53 | 88 | 120 | 200 | 200 | 240 | 380 | 600 | 550 | Dry-type evaporator | ||
| Weight | Kg | 210 | 290 | 400 | 450 | 500 | 550 | 700 | 750 | 820 | 980 | 1600 | 2800 |
