Product Details
Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF780
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Injection Weight: |
2632~3932 |
Injection Rate: |
574~858 |
Clamp Tonnage: |
7800 |
Toggle Stroke: |
950 |
Space Between Tie Bars: |
980*950 |
Machine Dimension: |
11.43*2.40*3.14 |
Injection Weight: |
2632~3932 |
Injection Rate: |
574~858 |
Clamp Tonnage: |
7800 |
Toggle Stroke: |
950 |
Space Between Tie Bars: |
980*950 |
Machine Dimension: |
11.43*2.40*3.14 |

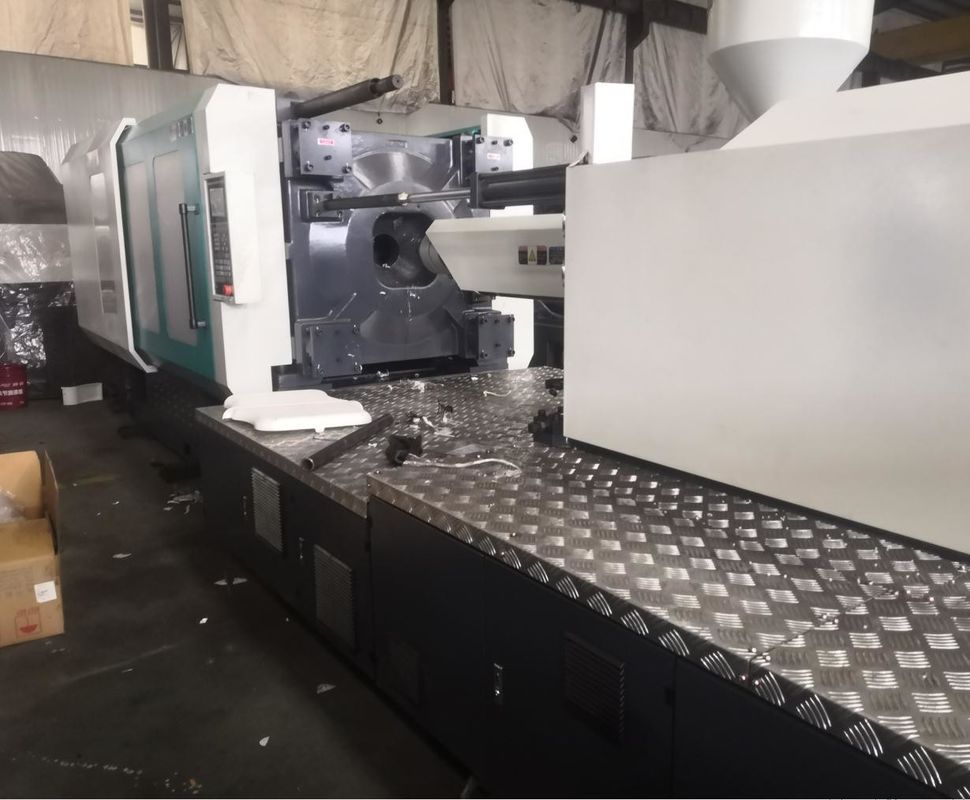

HJF-780 injection molding machine
Quick Reaction Stability System
Special control the computer for plastic injection machine use, control and display relatively independent with high reliability.
Technical parameters pre-setting and storage function
Parameters information protection function
Charging barrel temperature deviation automatic adjustment function
Abnormal alarm function
Front and back door emergency stop button
Real-time monitoring can display the condition of each motion
Electrical motor safety protection device
Robotic pincher interface
Cutting photoelectric switch
System hardware I/O detection function
Charging barrel temperature is controlled accurately by computer setting and PID closed-loop manner.
Screen protection function , prolong the life of screen using.
Full-enclosed electrical-controlled box, electrical components are neatly arranged, never interfere with each other.
| SPECIFICATION | HJF-780 | |||||||
| A | B | C | D | |||||
| Screw diameter | mm | 90 | 95 | 105 | 110 | |||
| Screw L/D Ratio | L/D | 23.2 | 22 | 19.9 | 19 | |||
| Shot size(theoretical) | cm³ | 2924 | 3258 | 3981 | 4369 | |||
| Injection weight(PS) | g | 2632 | 2933 | 3583 | 3932 | |||
| Injection pressure | Mpa | 195 | 175 | 143 | 130 | |||
| Injection rate | g/s | 574 | 640 | 781 | 858 | |||
| Screw Speed | rpm | 115 | ||||||
| Clamp tonnage | KN | 7800 | ||||||
| Opening stroke | mm | 950 | ||||||
| Space between the tie bars | mm | 980*950 | ||||||
| Max.Mold Height | mm | 960 | ||||||
| Min.Mold Height | mm | 400 | ||||||
| Ejector stroke | mm | 280 | ||||||
| Ejector tonnage | KN | 186 | ||||||
| Max.pump pressure | Mpa | 16 | ||||||
| Pump motor power | KW | 37+30 | ||||||
| Heater power | KW | 56.7 | ||||||
| Machine dimension(L*W*H) | M | 11.43*2.40*3.14 | ||||||
| Machine weight | T | 37 | ||||||
| Oil tank capacity | L | 1500 | ||||||
Haijiang Machinery Main Configuration
| Controller | Arcuchi/Porchesion(50-290T)(China) |
| Techmation(360-3000T)(Taiwan) | |
| Vane pump | Albert(USA) |
| Proportional valve | HJK series Northman(TAIWAN) |
| HJK series Northman(TAIWAN) or TOKIMEC(Japan) | |
| Directional valve | HNC(TAIWAN) or YUKEN(Japan) |
| Electric motor | Dongguan(Guangdong) |
| contactor | Mager(50-290T)/Schneider(China)(360-3000T) |
| High pressure hose | Fute(Ningbo) |
| Five-star hydrauhu | Dandun(China)STAFFA(UK) |
| Air breaker | LS(Korea) |
| Thermal overland relay | Schneider(China) |
| Limit switch | Omoron(Japan) |
| Lubrication pump | Automatic |
| Servo motor | SUMITOMO(Japan) |
| Servo pump | DELTA(Taiwan) |
| Servo sensor | ASHCROFT(Germany) |
SPARE PARTS(FOR FREE)
| 1.mold clamping with bolts:8pcs | 2.Nozzle:1pc |
| 3.Toolbox:1set | 4.heating ring:2pcs |
| 5.lubrication oil:1 bucket | 6.limit switch:2pcs |
| 7.hexagon wrench:1set | 8.thermocouple:2pcs |
| 9.seal ring:2pcs | 10.machine foot pad:6pcs |
| 11.vise:1pc | 12.power socket for auxiliary machine:2pcs |
| 13.wrench:1pc | 14.screwdriver:2pcs |
