Product Details
Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF290
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Injection Weight: |
648~905 |
Injection Rate: |
210~270 |
Clamp Tonnage: |
2900 |
Toggle Stroke: |
585 |
Space Between Tie Bars: |
600*600 |
Machine Dimension: |
6.0*1.6*2.1 |
Injection Weight: |
648~905 |
Injection Rate: |
210~270 |
Clamp Tonnage: |
2900 |
Toggle Stroke: |
585 |
Space Between Tie Bars: |
600*600 |
Machine Dimension: |
6.0*1.6*2.1 |

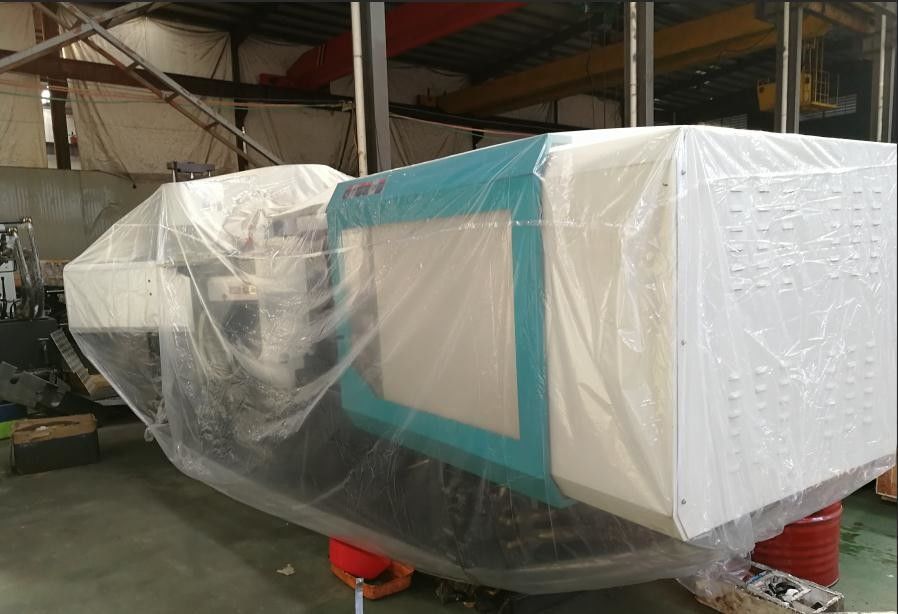

HJF-290 injection molding machine
Electronically Controlled Unit
1. CPU controller and display are independent and reliable.
2. A larger color LCD screen enhances clear display and support multi-language compatibility.
3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
4. A screen saver function extends the LCD life.
5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.
6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7. Closed loop PID barrel temperature control.
8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.
| SPECIFICATION | HJ-290U | |||
| A | B | C | ||
| Screw diameter | mm | 55 | 60 | 65 |
| Screw L/D Ratio | L/D | 23.1 | 21 | 19.3 |
| Shot size(theoretical) | cm³ | 712 | 847 | 994.9 |
| Injection weight(PS) | g | 648 | 779.9 | 905 |
| Injection pressure | Mpa | 205 | 168 | 143 |
| Injection rate | g/s | 210 | 240 | 270 |
| Screw Speed | rpm | 0~180 | ||
| Clamp tonnage | KN | 2900 | ||
| Opening stroke | mm | 585 | ||
| Space between the tie bars | mm | 600*600 | ||
| Max.Mold Height | mm | 600 | ||
| Min.Mold Height | mm | 220 | ||
| Ejector stroke | mm | 150 | ||
| Ejector tonnage | KN | 75 | ||
| Max.pump pressure | Mpa | 16 | ||
| Pump motor power | KW | 30 | ||
| Heater power | KW | 15 | ||
| Machine dimension(L*W*H) | M | 6.0*1.6*2.1 | ||
| Machine weight | T | 8.5 | ||
| Oil tank capacity | L | 570 | ||
Haijiang Machinery Main Configuration
| Controller | Arcuchi/Porchesion(50-290T)(China) |
| Techmation(360-3000T)(Taiwan) | |
| Vane pump | Albert(USA) |
| Proportional valve | HJK series Northman(TAIWAN) |
| HJK series Northman(TAIWAN) or TOKIMEC(Japan) | |
| Directional valve | HNC(TAIWAN) or YUKEN(Japan) |
| Electric motor | Dongguan(Guangdong) |
| contactor | Mager(50-290T)/Schneider(China)(360-3000T) |
| High pressure hose | Fute(Ningbo) |
| Five-star hydrauhu | Dandun(China)STAFFA(UK) |
| Air breaker | LS(Korea) |
| Thermal overland relay | Schneider(China) |
| Limit switch | Omoron(Japan) |
| Lubrication pump | Automatic |
| Servo motor | SUMITOMO(Japan) |
| Servo pump | DELTA(Taiwan) |
| Servo sensor | ASHCROFT(Germany) |
SPARE PARTS(FOR FREE)
| 1.mold clamping with bolts:8pcs | 2.Nozzle:1pc |
| 3.Toolbox:1set | 4.heating ring:2pcs |
| 5.lubrication oil:1 bucket | 6.limit switch:2pcs |
| 7.hexagon wrench:1set | 8.thermocouple:2pcs |
| 9.seal ring:2pcs | 10.machine foot pad:6pcs |
| 11.vise:1pc | 12.power socket for auxiliary machine:2pcs |
| 13.wrench:1pc | 14.screwdriver:2pcs |
