Product Details
Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF360
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Injection Weight: |
873~1346 |
Injection Rate: |
239~420 |
Clamp Tonnage: |
3600 |
Toggle Stroke: |
700 |
Space Between Tie Bars: |
680*680 |
Machine Dimension: |
6.3*1.9*2.4 |
Injection Weight: |
873~1346 |
Injection Rate: |
239~420 |
Clamp Tonnage: |
3600 |
Toggle Stroke: |
700 |
Space Between Tie Bars: |
680*680 |
Machine Dimension: |
6.3*1.9*2.4 |

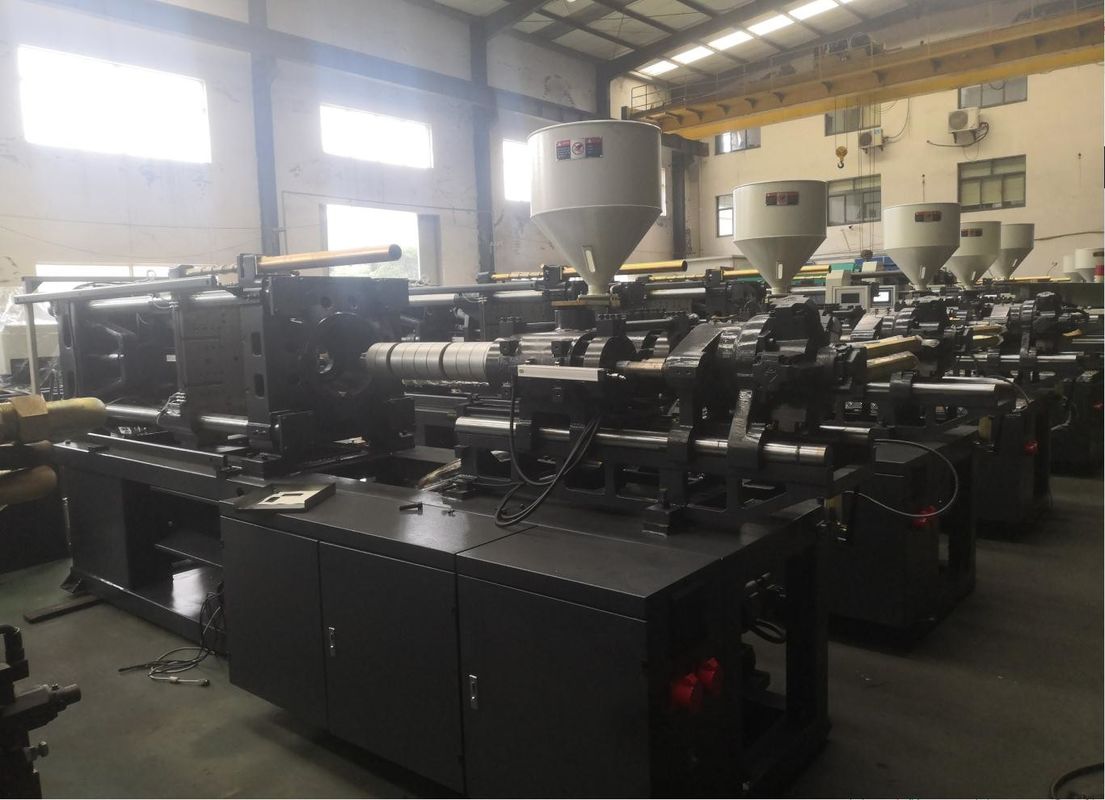

HJF-360injection molding machine
Hydraulic Unit Advantages
standard with precision and energy saving servo power system, the outputdrive system is sensitively altered, according to the actual need of the plastic parts beingproduced, avoid energy waste. Depending on the plastic parts being produced and the materialbeing processed, energy‐saving ability can reach to 20%~80%.
Electronically Controlled Unit
1. CPU controller and display are independent and reliable.
2. A larger color LCD screen enhances clear display and support multi-language compatibility.
3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
4. A screen saver function extends the LCD life.
5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.
6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7. Closed loop PID barrel temperature control.
8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.
Haijiang Machinery Main Configuration
| Controller | Arcuchi/Porchesion(50-290T)(China) |
| Techmation(360-3000T)(Taiwan) | |
| Vane pump | Albert(USA) |
| Proportional valve | HJK series Northman(TAIWAN) |
| HJK series Northman(TAIWAN) or TOKIMEC(Japan) | |
| Directional valve | HNC(TAIWAN) or YUKEN(Japan) |
| Electric motor | Dongguan(Guangdong) |
| contactor | Mager(50-290T)/Schneider(China)(360-3000T) |
| High pressure hose | Fute(Ningbo) |
| Five-star hydrauhu | Dandun(China)STAFFA(UK) |
| Air breaker | LS(Korea) |
| Thermal overland relay | Schneider(China) |
| Limit switch | Omoron(Japan) |
| Lubrication pump | Automatic |
| Servo motor | SUMITOMO(Japan) |
| Servo pump | DELTA(Taiwan) |
| Servo sensor | ASHCROFT(Germany) |
SPARE PARTS(FOR FREE)
| 1.mold clamping with bolts:8pcs | 2.Nozzle:1pc |
| 3.Toolbox:1set | 4.heating ring:2pcs |
| 5.lubrication oil:1 bucket | 6.limit switch:2pcs |
| 7.hexagon wrench:1set | 8.thermocouple:2pcs |
| 9.seal ring:2pcs | 10.machine foot pad:6pcs |
| 11.vise:1pc | 12.power socket for auxiliary machine:2pcs |
| 13.wrench:1pc | 14.screwdriver:2pcs |
