Product Details
Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF1000
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20pieces/month
Injection Weight: |
3251~5629 |
Injection Rate: |
580~930 |
Clamp Tonnage: |
10000 |
Space Between Tie Bar: |
1120*1020 |
Machine Dimension: |
12*2.8*3.14m |
Machine Weight: |
45ton |
Injection Weight: |
3251~5629 |
Injection Rate: |
580~930 |
Clamp Tonnage: |
10000 |
Space Between Tie Bar: |
1120*1020 |
Machine Dimension: |
12*2.8*3.14m |
Machine Weight: |
45ton |

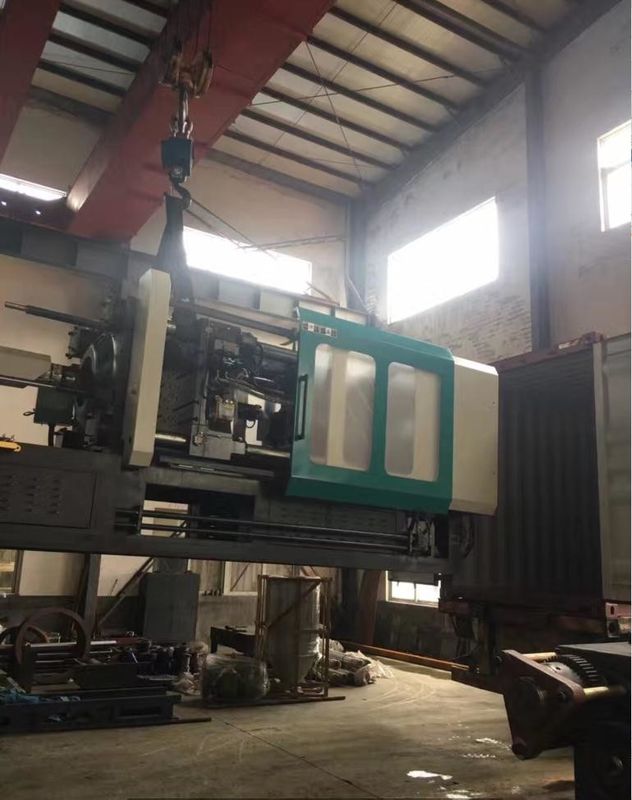

HJF-1000 injection molding machine
Clamping Unit Advantages
(Bigger space between tie‐bars, more molds size available)
HJF series IMM clamping system with wonderful rigidity, under high pressure clamping, the deformation extremely little, ensure a long lifespan, better quality products & save money; the stable and high efficient designed toggle system will help our clients to improve their profits.
Competitive advantages:
+injection Units
High injection pressure , High injection speed
+HYDRAULIC SYSTEM
Fast respone, stable output
+Electronic Units
intelligent control unit
Electronically Controlled Unit
1. CPU controller and display are independent and reliable.
2. A larger color LCD screen enhances clear display and support multi-language compatibility.
3. The control system also support remote monitor.In the event of a control problems,the machine can be connected to internet through a special interface.Inject service can realize remote fault diagnosis and maintenance.
4. A screen saver function extends the LCD life.
5. Ultra bright LED is provided for input and output point inspection.Proving convenient indication of the machine’s operation and machine service.
6. A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7. Closed loop PID barrel temperature control.
8. Dust and waterproof control cabinets provide a neat and tidy enclosure all electric control components.
| SPECIFICATION | HJF-1000 | |||||||
| A | B | C |
D
|
|||||
| Screw diameter | mm | 95 | 105 | 115 | 125 | |||
| Screw L/D Ratio | L/D | 23 | 22 | 20 | 18.6 | |||
| Shot size(theoretical) | cm³ | 3613 | 4413 | 5294 | 6255 | |||
| Injection weight(PS) | g | 3251 | 3972 | 4765 | 5629 | |||
| Injection pressure | Mpa | 210 | 162 | 133 | 120 | |||
| Injection rate | g/s | 580 | 708 | 850 | 930 | |||
| Screw Speed | rpm | 115 | ||||||
| Clamp tonnage | KN | 10000 | ||||||
| Opening stroke | mm | 1100 | ||||||
| Space between the tie bars | mm | 1120*1120 | ||||||
| Max.Mold Height | mm | 1100 | ||||||
| Min.Mold Height | mm | 500 | ||||||
| Ejector stroke | mm | 350 | ||||||
| Ejector tonnage | KN | 200 | ||||||
| Max.pump pressure | Mpa | 16 | ||||||
| Pump motor power | KW | 45+45 | ||||||
| Heater power | KW | 58 | ||||||
| Machine dimension(L*W*H) | M | 12*2.8*3.14 | ||||||
| Machine weight | T | 45 | ||||||
| Oil tank capacity | L | 1800 | ||||||
Haijiang Machinery Main Configuration
| Controller | Arcuchi/Porchesion(50-290T)(China) |
| Techmation(360-3000T)(Taiwan) | |
| Vane pump | Albert(USA) |
| Proportional valve | HJK series Northman(TAIWAN) |
| HJK series Northman(TAIWAN) or TOKIMEC(Japan) | |
| Directional valve | HNC(TAIWAN) or YUKEN(Japan) |
| Electric motor | Dongguan(Guangdong) |
| contactor | Mager(50-290T)/Schneider(China)(360-3000T) |
| High pressure hose | Fute(Ningbo) |
| Five-star hydrauhu | Dandun(China)STAFFA(UK) |
| Air breaker | LS(Korea) |
| Thermal overland relay | Schneider(China) |
| Limit switch | Omoron(Japan) |
| Lubrication pump | Automatic |
| Servo motor | SUMITOMO(Japan) |
| Servo pump | DELTA(Taiwan) |
| Servo sensor | ASHCROFT(Germany) |
