Product Details
Place of Origin: China
Brand Name: taihong
Certification: ISO9001
Model Number: SL230
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Export Standard
Delivery Time: 25 days
Payment Terms: TT, L/C, Western Union
Supply Ability: 500sets/month
Shot Weight: |
361/446/540grams |
Ejector Point: |
5 |
Machine Dimension: |
5.6m*1.5m*2.3m |
Tie Bar: |
520*520mm |
Rated Power: |
4KW |
Power Supply: |
380V 50HZ |
Shot Weight: |
361/446/540grams |
Ejector Point: |
5 |
Machine Dimension: |
5.6m*1.5m*2.3m |
Tie Bar: |
520*520mm |
Rated Power: |
4KW |
Power Supply: |
380V 50HZ |

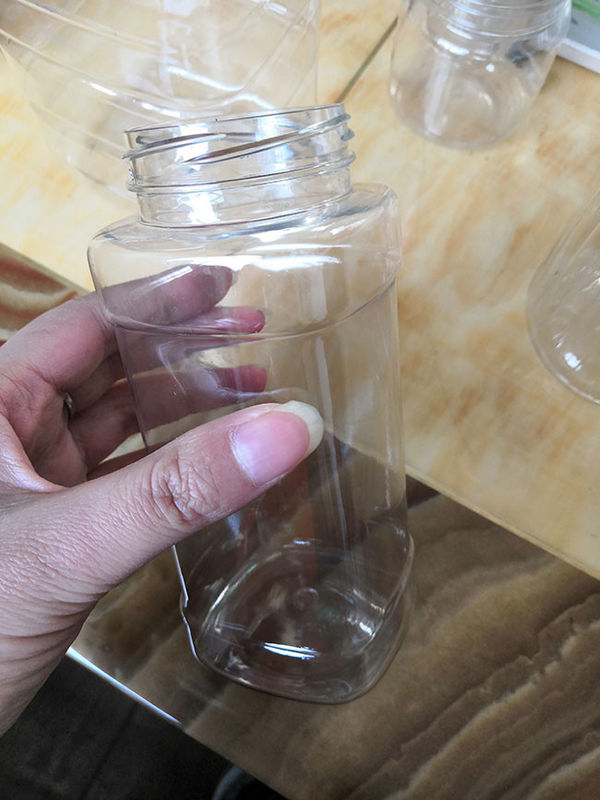

380V 50HZ Plastic Injection Molding Machine , injection blow machine for bottle ,pet bottle container machine
Main technical parameters
| Product Name | 230 Injection molding machine price |
| Capacity | 10-15 cartoon/min |
| Table height | 800mm |
| Applicable size | (L)300-400×(W)300-450×(H)100-200 |
| Machine size | (L)5.6m×(W)1.5m×(H)2.31m |
| Machine weight | 6500KG |
| Rated power | 4KW |
| Power supply | 380V 50HZ |
| Air supply | 150L/min 6Mpa |
| Hot melt adhesive | curing time 2-3 seconds,working temperature: 150-180°C |
Characteristics
1) Easy nozzle alignment after injection carriage improved. Easy care and maintenance.
2)high optimistic mechanical structure with high-tech controller,
greatly increase machine service life and precise.
3) High injection speed reducing cycle time.
4) Thicker platens to add strength, free from deforming molds.
5) dual cylinder injection, perform stability and reliability.
Shipping and Payment
| Product Name | 230 Injection molding machine price |
| Packing | Export standard package |
| MOQ | 1 set |
| FOB price | Please contact for new price |
| Delivery time | 25days |
| FOB port | Ningbo |
| Payment terms | T/T,L/C at sight |
Specification
| SL230 | A | B | C | |
| INJECTION UNIT | ||||
| SCREW DIAMETER | mm | 45 | 50 | 55 |
| SCREW L/D RATIO | L/D | 24.4 | 22.0 | 20.0 |
| SHOT SIZE(THEORETICAL) | cm³ | 397 | 490 | 593 |
| INJECTION WEIGHT(PS) | g | 361 | 446 | 540 |
| INJECTION PRESSURE | Mpa | 219 | 177 | 145 |
| CLAMPING UNIT | ||||
| CLAMPING FORCE | Kn | 2300 | ||
| TOGGLE STROKE | mm | 475 | ||
| SPACE BETWEEN TIE BARS | mm | 520*520 | ||
| MAX.MOULD HEIGHT | mm | 560 | ||
| MIN.MOULD HEIGHT | mm | 200 | ||
| EJECTOR STROKE | mm | 150 | ||
| EJECTOR TONNAGE | Kn | 70 | ||
| MAX.TEMPLATE SPACE | mm | 1035 | ||
| DIE HOLE DIAMETER | mm | 160 | ||
| EJECTOR NUMBER | PC | 9 | ||
| OTHERS | ||||
| MAX.PUMP PRESSURE | Mpa | 16 | ||
| TEMPERATURE CONTROL | paragraph | 3+1 | ||
| MACHINE DIMENSION(L*W*H) | m | 5.6*1.5*2.3 | ||
| MACHINE WEIGHT | Ton | 6.5 | ||
| OIL TANK CUBAGE | L | 300 | ||
