Product Details
Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF290
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD$25,200/set
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Injection Weight: |
648~905 |
Injection Rate: |
210~270 |
Clamp Tonnage: |
2900 |
Toggle Stroke: |
585 |
Space Between Tie Bar: |
600*600 |
Machine Dimension: |
6.0*1.6*2.1m |
Injection Weight: |
648~905 |
Injection Rate: |
210~270 |
Clamp Tonnage: |
2900 |
Toggle Stroke: |
585 |
Space Between Tie Bar: |
600*600 |
Machine Dimension: |
6.0*1.6*2.1m |

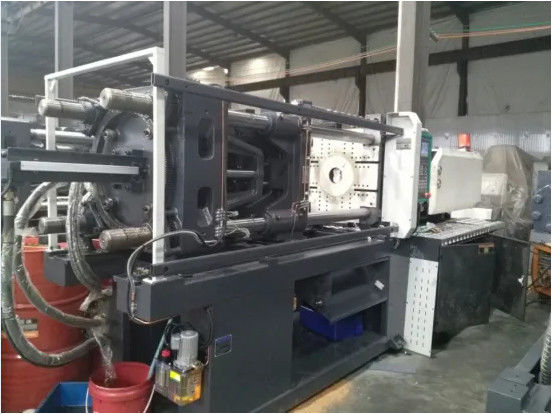

HJF290 Injection Molding Machine
FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.
CONTROL SYSTEM
All digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation an
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports multi-language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.
8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.
| SPECIFICATION | HJF290 | |||
| Screw Type | A | B | C | |
| Screw Diameter | Mm | 55 | 60 | 65 |
| Screw L/D Ration | L/D | 23.1 | 21 | 19.3 |
| Shot Size(Theoretical) | cm3 | 712 | 847 | 994.9 |
| Injection Weight(PS) | g | 648 | 779.9 | 905 |
| Injection Rate | g/s | 210 | 240 | 270 |
| Injection Pressure | MPa | 205 | 168 | 143 |
| Screw Speed | rpm | 0~180 | ||
| Clamping Force | KN | 2900 | ||
| Opening stroke | Mm | 585 | ||
| Space Between Tie Bars | mm | 600*600 | ||
| Max.Mold Height | mm | 600 | ||
| Min.Mold Height | mm | 220 | ||
| Ejector Stroke | mm | 150 | ||
| Ejector Tonnage | KN | 75 | ||
| Max.Pump Pressure | MPa | 16 | ||
| Pump Motor Power | KW | 30 | ||
| Heater power | KW | 15 | ||
| Machine Dimension(L*W*H) | M | 6.0*1.6*2.1 | ||
| Machine weight | T | 8.5 | ||
| Oil Tank Capacity | L | 570 | ||
Haijiang Machinery Main configuration
Standard machinery
| PLC | PORCHESON (TAIWAN) |
| Vane Pump | Albert (USA) |
| Directional Valve | Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN) |
| Proportional Valve | HNC (TAIWAN) |
| Electric Motor | Qianlima (CHINA ) |
| Contactor | LS (KOREA) |
| Plasticizing Oil Motor | STF(CHINA) |
| Air Breaker | LS (KOREA) |
| Thermal Overload Relay | LS (KOREA) |
| Limit Switches | Omoron (JAPAN ) |
| Liner Position Sensors (Electric Ruler) | Minor (China) |
| Lubrication Pump | ChaoRun(China) |
Servo machinery
| PLC | PORCHESON (TAIWAN) |
| Directional Valve | Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN) |
| Air Breaker | LS (KOREA) |
| SSR(solid state relay) | Fotek(TAIWAN) |
| Plasticizing Oil Motor | STF(China) |
| Limit Switches | Omoron (JAPAN ) |
| Gear Pump | SUMITOMO (JAPAN) |
| Servo Driver | DELTA (TAIWAN) |
| Servo Sensor | ASHCROFT(GERMAN) |
| Servo Motor | Albert(USA)/Phase(ITALY) |
