Product Details
Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF140
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD$17,200/set
Packaging Details: Export standard
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20sets/month
Injection Weight: |
193~271 |
Injection Rate: |
94~135 |
Clamp Tonnage: |
1400 |
Toggle Stroke: |
380 |
Space Between Tie Bar: |
420*420 |
Machine Dimension: |
4.5*1.2*1.7m |
Injection Weight: |
193~271 |
Injection Rate: |
94~135 |
Clamp Tonnage: |
1400 |
Toggle Stroke: |
380 |
Space Between Tie Bar: |
420*420 |
Machine Dimension: |
4.5*1.2*1.7m |

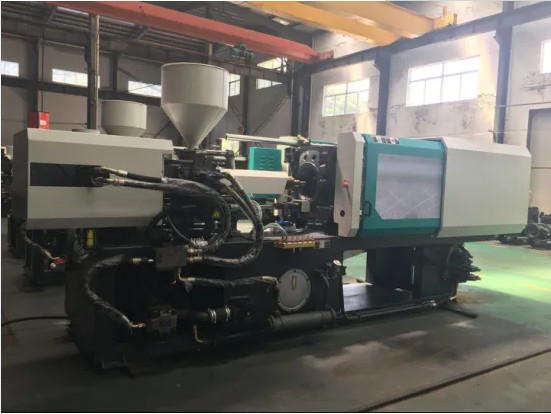

Injection Molding Machine HJF140
FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.
CONTROL SYSTEM
All digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.
HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.
| SPECIFICATION | HJF140 | |||
| Screw Type | A | B | C | |
| Screw Diameter | Mm | 38 | 42 | 45 |
| Screw L/D Ration | L/D | 22.1 | 21.6 | 19.5 |
| Shot Size(Theoretical) | cm3 | 215 | 263 | 302 |
| Injection Weight(PS) | g | 193 | 236 | 271 |
| Injection Rate | g/s | 94 | 105 | 135 |
| Injection Pressure | MPa | 205 | 159 | 140 |
| Screw Speed | rpm | 0~220 | ||
| Clamping Force | KN | 1400 | ||
| Opening stroke | mm | 380 | ||
| Space Between Tie Bars | mm | 420*420 | ||
| Max.Mold Height | mm | 450 | ||
| Min.Mold Height | mm | 170 | ||
| Ejector Stroke | mm | 120 | ||
| Ejector Tonnage | KN | 33 | ||
| Max.Pump Pressure | MPa | 16 | ||
| Pump Motor Power | KW | 13 | ||
| Heater power | KW | 7.2 | ||
| Machine Dimension(L*W*H) | M | 4.5*1.2*1.7 | ||
| Machine weight | T | 4.2 | ||
| Oil Tank Capacity | L | 230 | ||
Haijiang Machinery Main configuration
Standard machinery
| PLC | PORCHESON (TAIWAN) |
| Vane Pump | Albert (USA) |
| Directional Valve | Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN) |
| Proportional Valve | HNC (TAIWAN) |
| Electric Motor | Qianlima (CHINA ) |
| Contactor | LS (KOREA) |
| Plasticizing Oil Motor | STF(CHINA) |
| Air Breaker | LS (KOREA) |
| Thermal Overload Relay | LS (KOREA) |
| Limit Switches | Omoron (JAPAN ) |
| Liner Position Sensors (Electric Ruler) | Minor (China) |
| Lubrication Pump | ChaoRun(China) |
Servo machinery
| PLC | PORCHESON (TAIWAN) |
| Directional Valve | Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN) |
| Air Breaker | LS (KOREA) |
| SSR(solid state relay) | Fotek(TAIWAN) |
| Plasticizing Oil Motor | STF(China) |
| Limit Switches | Omoron (JAPAN ) |
| Gear Pump | SUMITOMO (JAPAN) |
| Servo Driver | DELTA (TAIWAN) |
| Servo Sensor | ASHCROFT(GERMAN) |
| Servo Motor | Albert(USA)/Phase(ITALY) |
FAQ
Q1. What is the warranty for the injection molding machine
A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.
Q2:Can you sending engineer to oversea install machine and trainning customer's workers.
A1: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free.
After one week, 50$ per day
Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual
Tool box,Lubricate Oil,Sealing,Filter etc.
Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A1:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.
Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.
Q6:If i Need Green Color machine,can you do it for us?
Q7: Yes,please give us the color sample.So we can do it for you.
