Product Details
Place of Origin: China
Brand Name: Taihong
Certification: ISO9001

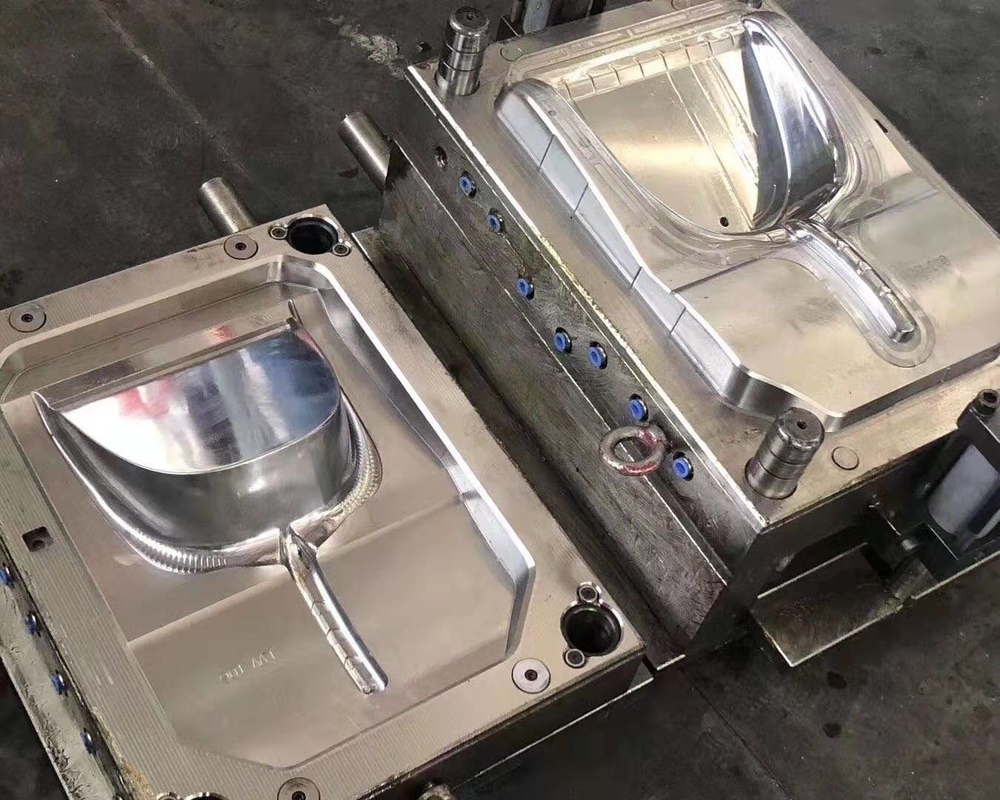

Model Number: plastic injection molds
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export standard
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 20sets/month
Mold Base: |
LKM Or By Requested |
Mold Mater: |
ABS,PP,PC,PA,PMMA,PS,POM And Etc. |
Runner: |
Hot/Cold Runner |
Cavity: |
1 Cavity |
Mold Base: |
LKM Or By Requested |
Mold Mater: |
ABS,PP,PC,PA,PMMA,PS,POM And Etc. |
Runner: |
Hot/Cold Runner |
Cavity: |
1 Cavity |
Specifications:
Design: We use the most advanced mould design software Auto CAD, UG
Manufacture: We use With advanced technology, unmatched skill, professional and advanced equipment size range from 45T-400T, and experienced technicians to fit our customers requirements, like tooling manufacturing, stamping and surface treatment service
Product Material: Stainless steel
Making process and Capability: Progression die, Stamping, deep drawing, Bending, Punching, Threading, Tapping, Riveting, Grinding, CNC machining, Metal Fabrication,forming,Stretch forming,,Assembling, Blanking and so on.
Price Terms: FOB SHANGHAI, CHINA
Lead time: 20-50days based on the different products
Packaging: canton case or as per customers' requirement
Certification:ISO9001,IATF16949,SGS
Industry: these parts are used in Automotive, Electrical, Building, Furniture, Machine assembly, Computer, Air industry , Oil field Equipments, Marine equipments, Mine equipment,Agricultural Machines,Transportation Equipments, OEM/ODM Electronics......
| Item | Description |
| Product Name | Plastic part |
| Working Process | Plastic injection |
| Material | ABS, PC, PP, PS, POM, PMMA |
| Mould Base Material | LKM, FUTA, HASCO, DME, etc. or as per customer' s requirement. |
| Surface treatment | Polishing plating |
| Color | Red, blue, green, yellow |
| Packing | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Usage | All kinds of cars, machinery, home appliance, electronic products, electric appliance, stationery, computers, power switches, miniature switches, architecture, commodity and A/V equipment, hardware and plastic molds, sports equipment and gifts, and more |
| Quality Control | Conducted by ISO9001 |
| Cavity Number | Single cavity, Multi Cavity, based on customer' s requirement. |
| Applications | auto,motorcycle,industry,ariculture,mine,furniture,elevator,etc |
| Equipments | CNC,EDM,ArgieCharmilles,Milling Machine,3D CMM, Projector,HG,Injection Machine |
| File Format | Solidworks,Pro/Engineer,Auto CAD,PDF,JPG |
| Service | Warm and quick response service provided by the professional Export Sales Team with many years' experience in handling exports to the US, Europe, Japan and other countries and regions. |
| Inspection | IQC, IPQC,FQC,QA |
Description of Plastic Injection Molding :
Plastic Mould Application: Automotive,Consumer goods,Medical,Electronics,Telecommunications,Packaging etc.
Plastic Production Raw material: ABS, PC, NYLON, PE, PA(Nylon) POM ,PVC ,PBT, PMMA ,TPU ,TPE or custom material
Mold base: LKM, HASCO, DME etc.
Main Processing Equipment: CNC, Grinding Machine, EDM Center, Injection molding machine
Design software: UG, PROE, SOLIDWORK, CAD
Mould Steel Material: 45#, P20, H13, 718, 2738, NAK80, S136
Runner: Hot runner/Cold Runner
Mold Life: 50,000-1,500,000 shots
MOQ: 1 Set
Delivery:By sea or air
Suface: Electro-plating, powder coating, painting, silk screening etc.
Package: Wooden case or according to customer's requirement
| Mould Produce Process | ||
| 1 | Product Design |
Customer send us the product drawing directly or we draw the product according to the sample,then we send customer the product drawing to confirm |
| 2 | Mould Design |
We'll start to design mould after the product drawing confirmed,then send customer the mould drawing to confirm |
| 3 | Mould Making |
The mould start to make after the mould drawing confirmed,the process include prepare steel,rough cut,finish machining,assembly etc |
| 4 | Mould Test |
we'll test the mould after mould assembly,then we'll send customer samples and video of mould test to confirm |
| 5 | Final Process |
The mould start to polish if the sample is ok,and make grain,nitridation or chroming if customer required |
| 6 | Mould Test |
We'll test the mould again after polishing,then send customer the final sample and video of mould test to confirm |
| 7 | Mould Packing |
The mould stard to pack with wooden case after the final sample confirmed, then the mould will be sent to port and waiting for shipping |
