Product Details
Place of Origin: China
Brand Name: taihong
Certification: ISO9001
Model Number: HJF80
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export Standard
Delivery Time: 20 days
Payment Terms: TT, L/C, Western Union, MoneyGram
Supply Ability: 500sets/month
Shot Weight300rams: |
91.9/111grams |
Motor Power: |
9kw |
Heating Power: |
5.3kw |
Machine Weight: |
3 Tons |
Machine Dimension: |
3.5m*1.2m*1.6m |
Shot Weight300rams: |
91.9/111grams |
Motor Power: |
9kw |
Heating Power: |
5.3kw |
Machine Weight: |
3 Tons |
Machine Dimension: |
3.5m*1.2m*1.6m |

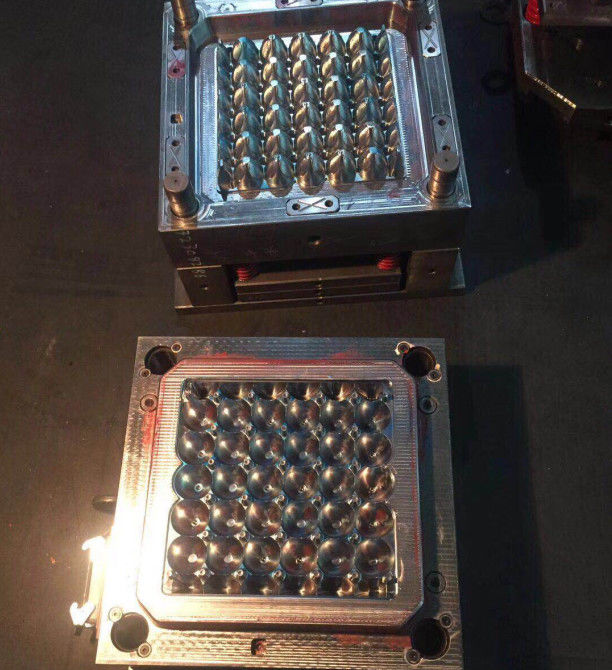

1 cavities egg tray mould , PP Auto Injection Molding Machine , egg container plastic machinery
1.Strengthen locking structure
Optimized special locking system to reach efficient and fast production
2.Centralized lubrication, reliable protection
Configuring rational centralized lubrication, providing more professional, better lubrication to make machine more cleaner.
3.Professional templates optimized design
Template by advanced finite element analysis software to optimize design, high rigidity, high strength, to meet the rapid impact conditions demand.
4.Powerful, friendly control system
Adopts professional controller and friendly interface, easy and fast operation, with good reliability.
5.New type screw driving system
Spline connection for screw and oil motor, smooth and reliable transmission, big transfer torque, easy disassembly.
6.Excellent injection performance
Double cylinder injection, entire floor-guided, reliable and stable.
7.Superior clamping system
Adopts optimized connection rod structure, faster and smoother operation.
8.New frame structure
Simple and generous appearance, machine body force reasonable and stronger.
9.Professional plasticizing system
Suitable for different types of plastic raw material with professional plasticizing and heating system, good plasticizing performance.
10High efficient powerful servo system optional
Power system adopts high pressure gear box and servo motor, rotary encoder, pressure transducer and servo amplifier to get system closed-loop control.
Specification
| Injection Unit | UNIT | A | B |
| Screw diameter | mm | 32 | 36 |
| Screw L/D ratio | L/D | 21.5 | 19.8 |
| Shot size(theoretical) | CM³ | 101 | 123 |
| Injection weight(ps) | g | 91.9 | 111 |
| Injection rate | g/s | 70 | 82 |
| Injection pressure | Mpa | 188 | 148.5 |
| Screw speed | rpm | 0-220 | |
| Clamping Unit | |||
| Clamp tonnage | KN | 800 | |
| toggle Stroke | Mm | 275 | |
| Space Between tie Bars | mm | 315*315 | |
| Max.mold height | mm | 320 | |
| Min.mold height | mm | 120 | |
| Ejector Stroke | Mm | 80 | |
| Ejector tonnage | KN | 27 | |
| Others | |||
| Max.pump pressure | Mpa | 16 | |
| Pump motor power | KW | 9 | |
| Heater power | kw | 5.3 | |
| Machine size(L x W x H) | m | 3.5*1.2*1.6 | |
| Machine weight | Ton | 3 | |
| Oil tank capacity | L | 210 | |
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: , FOB, CFR, CIF,.
Q4. How about your delivery time?
A: Generally, it will take 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
