Product Details
Place of Origin: China
Brand Name: Taihong
Certification: ISO9001
Model Number: HJF180
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Export Standard
Delivery Time: 30 days
Payment Terms: TT, L/C, Western Union, MoneyGram
Supply Ability: 500sets/month
Shot Weight300rams: |
274/314/388grams |
Motor Power: |
15kw |
Heating Power: |
7.5kw |
Machine Weight: |
5.5 Tons |
Machine Dimension: |
5.1m*1.4m*1.9m |
Shot Weight300rams: |
274/314/388grams |
Motor Power: |
15kw |
Heating Power: |
7.5kw |
Machine Weight: |
5.5 Tons |
Machine Dimension: |
5.1m*1.4m*1.9m |

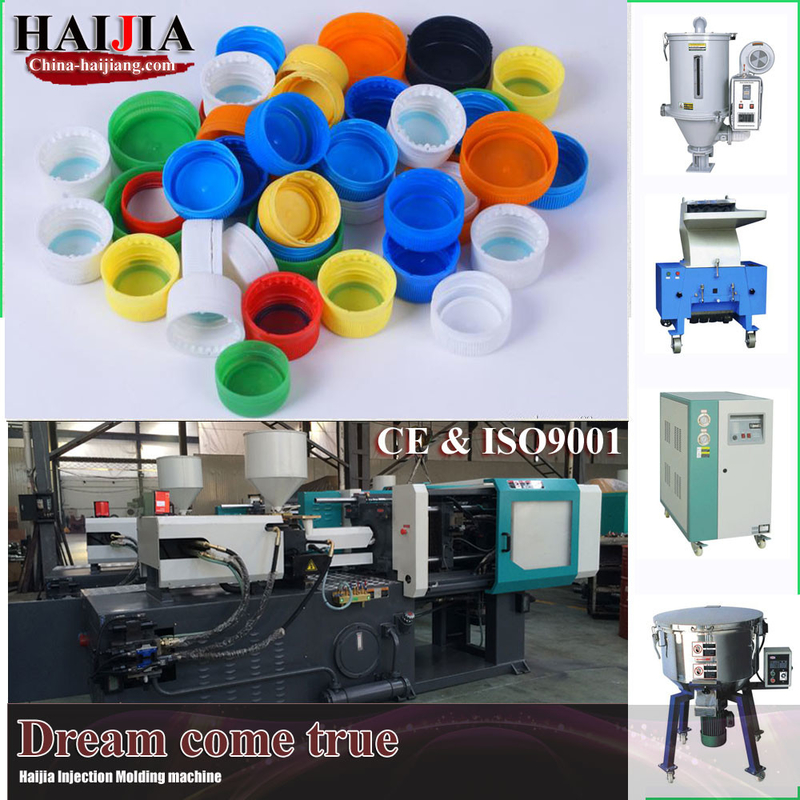

plastic moulding machine for bottle cap , Auto Injection Molding Machine , wattle bottle cover injection making machine
High Efficiency Energy Saving Injection Molding Machine:
1) LCD computer control with big display screen
2) Hydraulic double proportional valve
3) Hard chrome plated high tensile strength steel tie bars
4) Generous space for fitting large moulds
5) Large opening stroke
6) Two position transducers to control Clamping and Injection
7) Four stages of injecting, independent velocity and pressure control
8) Hydraulic mould height adjustment device
9) Screw cold-start prevention device
10) Melt decompression control
11) Screw back pressure control
12) Multiple hydraulic ejection
13) Differential high speed clamping
14) Centralized lubrication system
15) Low pressure mould protection device
16) Mechanical safety interlock
17) Double electrical safety interlock
18) Oil return filter
19) Oil tank with inner stainless steel container
Control unit
Name:Techmation PLC Cotroller
Brand: Techmation
Original: TW
Multiple-unit plastic moulding data memory system
it real-timely monitors various actions and gives automatic warning for defects
data protection lock for parameters
motor safety protection device
color warning light
The international famous components, durable and low energy consumption.
Main application
This is a new generation packaging machinery which is developed on the basis of introducing and absorbing the advanced technology from America, Japan and Germany. Adopts top quality components like Japanese Mitsubishi PLC, SMC pneumatic components, American Nordson hot melt adhesive, ensures the carton forming, packing, folding, glue spraying, sealing and the following packaging process continuously and automatically finished. With characteristics of reasonable structure, stable performance, reliable quality, high productivity, wide adaptability, and high degree automation. Widely used in instant noodles, cigarettes, liquor, beverage and other cartoon packaging products
Characteristics
1. Adopts the imported control components, durable, safe, and low failure rate.
2. Use human-computer interface, simple and more visually oriented.
3. The machine uses machine electrical and air linkage, excellent effect of bottom sealing.
4. East to adjust different sizes of cartons, adjust quickly and easily, available for a wide range of cartons.
5. Low power consumption, simple and convenient operation, low noise.
6. Use tap to seal the cartoon bottom, protected from weather, sealing reliable.
Spare Parts
| 1.Mold clamping with bolts:8PCS | 2.Nozzles:1PCS |
| 3.Toolbox:1SET | 4.Heating ring:2PCS |
| 5.Lubrication Oil:1 bucket | 6.Limit Switch:2PCS |
| 7.Hexagon Wrench:1sets | 8.Thermocouple:2PCS |
| 9.Seal Ring:2PCS | 10.Machine foot pads:6PCS |
| 11.Visa:1PCS | 12.Power socket for auxiliary machine:2PCS |
| 13.Wrench:1PCS | 14.Screwdriver:2PCS |
Specification
| Injection Unit | UNIT | A | B | C | D |
| Screw diameter | mm | 95 | 105 | 115 | 125 |
| Screw L/D ratio | L/D | 23 | 22 | 20 | 18.6 |
| Shot size(theoretical) | CM³ | 3613 | 4413 | 5294 | 6255 |
| Injection weight(ps) | g | 3251 | 3972 | 4765 | 5629 |
| Injection rate | g/s | 580 | 708 | 850 | 930 |
| Injection pressure | Mpa | 210 | 162 | 133 | 120 |
| Screw speed | rpm | 115 | |||
| Clamping Unit | |||||
| Clamp tonnage | KN | 10000 | |||
| toggle Stroke | Mm | 1100 | |||
| Space Between tie Bars | mm | 1120*1020 | |||
| Max.mold height | mm | 1100 | |||
| Min.mold height | mm | 500 | |||
| Ejector Stroke | Mm | 350 | |||
| Ejector tonnage | KN | 200 | |||
| Others | |||||
| Max.pump pressure | Mpa | 16 | |||
| Pump motor power | KW | 45+45 | |||
| Heater power | kw | 58 | |||
| Machine size(L x W x H) | m | 12*2.8*3.14 | |||
| Machine weight | Ton | 45 | |||
| Oil tank capacity | L | 1800 | |||
