Product Details
Place of Origin: China
Brand Name: HAIJIA
Certification: CE,ISO9001
Model Number: Desktop 01
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD5800
Packaging Details: wooden box
Delivery Time: 25 days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 20 sets per month
Machine Type: |
Mini Injection Machine |
Method: |
Full Electric |
Shot Weight: |
20grams |
Voltage: |
220V 50Hz |
Screw Size: |
16 Mm |
Nozzle Size: |
2mm |
Machine Type: |
Mini Injection Machine |
Method: |
Full Electric |
Shot Weight: |
20grams |
Voltage: |
220V 50Hz |
Screw Size: |
16 Mm |
Nozzle Size: |
2mm |

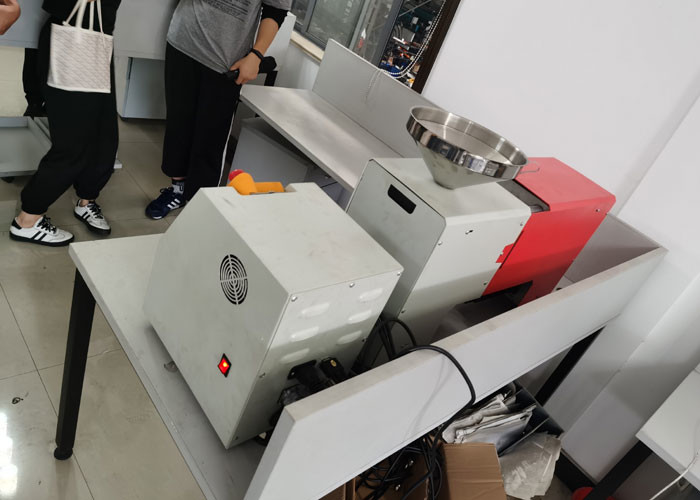

Small mini injection molding machine weight only 100 kgs
NINGBO HAIJIANG MACHINERY MANUFACTURING CO.,LTD., situated in Ningbo Yinzhou Investment & Innovation Center, coversa land of more than 50,000M2.It was established in 1992 and now employs a staff of more than 500 people. with CE and ISO9001
Mini
It covers an area of about 1square meters,and can build mini injection workshop, saving investment of
workshop and mold.
>Machine dimension:700mm*340mm*180mm;
>Net weight:70kg.
High efficiency: 3.5s shaping cycle
Traditional hydraulic press:
Shot speed: 160~200mm/s
Molding cycle :7~10 /s
HaijiangMini:
Max shot speed: 500mm/s
Molding cycle 3.5 /s
| SPECIFICATION | HJKMINI-8T |
| VOLTAGE SUPPLY | 220V |
| POWER COMSUMPTION | 1 KW |
| NOZZLE SIZE | 3mm |
| SCREW DIAMETER | 16 |
| COOLING METHOD | Water cooling(or 220V mold temperature controller) |
| MOLD INSTALLATION SIZE | 200*130*150(L*W*H) |
| PLASTIC RAW MATERIAL | PP,PE,PA6,PS,PEI,PMMA,PVC,ABS etc |
| PRODUCT WEIGHT | 20g |
| MACHINE DIMENSIONS | 900*210*350(L*W*H) |
| MACHINE WEIGHT | 100KG |
| CLAMPING FORCE | 10T |
| MOLD OPENING DISTANCE | 70mm |
| EJECTION DISTANCE | 1-30mm |
| TEMPERATURE RANGE | 0-500℃ |
| MONITOR | TOUCH SCREEN |
| CONTROL SYSTEM | PLC |
| TRANSMISSION | CHAIN (or Timing belt pulley) |
| SPACE BETWEEN TIE-BARS | 130mm*130mm |
| SHELL | OPTIONAL |
| AUXILIARY MACHINES(optional) | Auto loader,hopper dryer,mold temperature controller |
