Ningbo Haijiang Machinery Co.,Ltd. sales@china-haijiang.com 86-574-88233242
Product Details
Place of Origin: Ningbo, China
Brand Name: HAIJIA
Certification: CE/ISO9001
Model Number: HJF240
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: USD 17879/piece
Packaging Details: Standard Export Package
Delivery Time: 25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pieces per Year
Color: |
Blue And White |
Warranty: |
1year |
Style: |
Horizontal |
Automatic: |
Full Automatic |
Type: |
Plastic Injection Molding Machine |
Condition: |
New |
Color: |
Blue And White |
Warranty: |
1year |
Style: |
Horizontal |
Automatic: |
Full Automatic |
Type: |
Plastic Injection Molding Machine |
Condition: |
New |

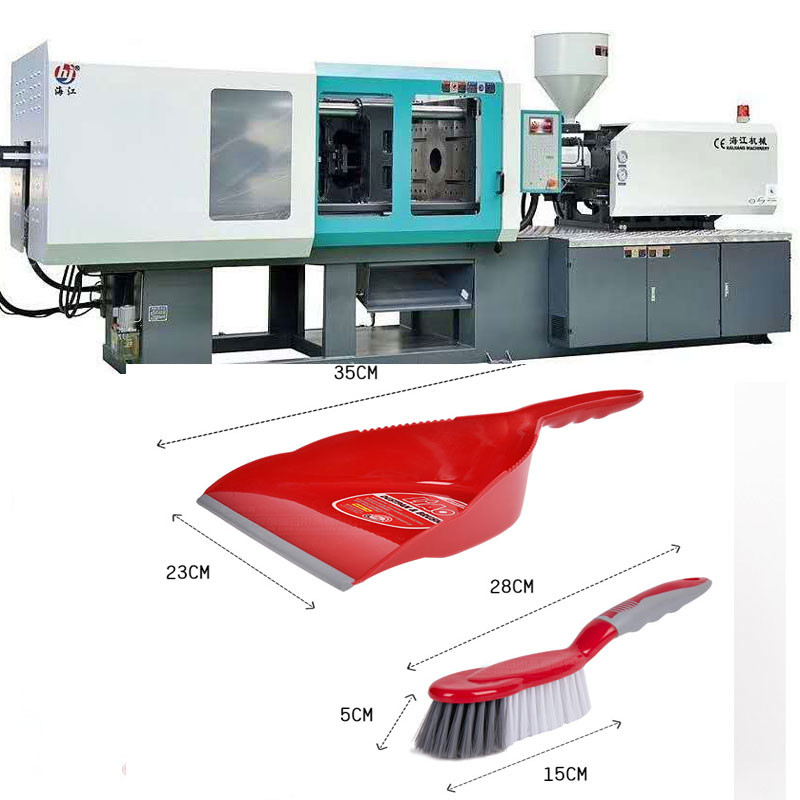

plastic brush injection molding machine with high qualoty and output
Injection Molding Machine HJF240
Adjustment Unit
Automatic Mold Height Adjustment Saves the time and cost during the mold changing.
Clamping Unit
The plates were designed using FEM software, ensuring a stable and rigid clamping system. Five point inward moving double toggle system ensures high rigidity and precision for mold clamping and also reducing stress and Strain effects.
Hydraulic Unit
The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine.
Injection Unit
Dual-pillar supporting and dual-cylinder injection balance devices ensure the stress on screw balanced during injection.
Specific screw and barrel designs are available for processing different material requirements.
Electronically Controlled Unit
1.CPU controller and display are independent and reliable.
2.A larger color LCD screen enhances clear display and supports Multi language compatibility.
3.The control system also supports remote monitor. In the event of a control problems, the machine can be connected to internet through a special interface. Inject service can realize remote fault diagnosis and maintenance.
4.A screen saver function extends the LCD life.
5.Ultra bright LED is provided for input and output point inspection. Proving convenient indication of the machine’s operation and machine service
6.A data hardware lock is provided to prevent unauthorized people from effecting the machines performance.
7.Closed Loop PID barrel temperature control.
8.Dust and waterproof control cabinets provide a neat and tidy enclosure all electrical control components.
| SPECIFICATION | HJF240 | |||
| Screw Type | A | B | C | |
| Screw Diameter | Mm | 50 | 55 | 60 |
| Screw L/D Ration | L/D | 22.2 | 20 | 18.2 |
| Shot Size(Theoretical) | cm3 | 508 | 593 | 706 |
| Injection Weight(PS) | g | 462 | 534 | 642 |
| Injection Rate | g/s | 148 | 179 | 202 |
| Injection Pressure | MPa | 180 | 160.8 | 128 |
| Screw Speed | rpm | 0~180 | ||
| Clamping Force | KN | 2400 | ||
| Opening stroke | Mm | 490 | ||
| Space Between Tie Bars | mm | 530*510 | ||
| Max.Mold Height | mm | 530 | ||
| Min.Mold Height | mm | 200 | ||
| Ejector Stroke | mm | 165 | ||
| Ejector Tonnage | KN | 70 | ||
| Max.Pump Pressure | MPa | 16 | ||
| Motor Power | KW | 25.1 | ||
| Heater power | KW | 11.65 | ||
| Machine Dimension(L*W*H) | M | 5.4*1.5*2 | ||
| Machine weight | T | 7 | ||
| Oil Tank Capacity | L | 340 | ||
Haijiang Machinery Main configuration
Standard machinery
| PLC | PORCHESON (TAIWAN) |
| Vane Pump | Albert (USA) |
| Directional Valve | Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN) |
| Proportional Valve | HNC (TAIWAN) |
| Electric Motor | Qianlima (CHINA ) |
| Contactor | LS (KOREA) |
| Plasticizing Oil Motor | STF(CHINA) |
| Air Breaker | LS (KOREA) |
| Thermal Overload Relay | LS (KOREA) |
| Limit Switches | Omoron (JAPAN ) |
| Liner Position Sensors (Electric Ruler) | Minor (China) |
| Lubrication Pump | ChaoRun(China) |
Servo machinery
| PLC | PORCHESON (TAIWAN) |
| Directional Valve | Northman(TAIWAN) /Yuken(JAPAN)/Tokimec(JAPAN) |
| Air Breaker | LS (KOREA) |
| SSR(solid state relay) | Fotek(TAIWAN) |
| Plasticizing Oil Motor | STF(China) |
| Limit Switches | Omoron (JAPAN ) |
| Gear Pump | SUMITOMO (JAPAN) |
| Servo Driver | DELTA (TAIWAN) |
| Servo Sensor | ASHCROFT(GERMAN) |
| Servo Motor | Albert(USA)/Phase(ITALY) |
SPARE PARTS( FOR FREE)
| 1. Mold clamping with bolts: 8PCS, | 2. Nozzles: 1PCS, |
| 3. Toolbox: 1SET, | 4. Heating Band: 2PCS, |
| 5. Lubrication Oil: 1 Bucket | 6. Limit Switch: 2PCS, |
| 7. Hexagon Wrench: 1SET, | 8. Thermocouple: 2PCS |
| 9. Seal Ring: 2PCS, | 10. Machine shockproof pads: 6PCS, |
| 11. Vise: 1PCS, | 12. Power socket for auxiliary machines: 2PCS, |
| 13. Wrench: 1PCS, | 14. Screwdriver: 2PCS, |
Q1. What is the warranty for the injection molding machine
A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.
Q2:Can you sending engineer to oversea install machine and trainning customer's workers.
A2: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free.
After one week, 50$ per day
Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual
Tool box,Lubricate Oil,Sealing,Filter etc.
Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A4:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.
Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.
Q6:If i Need Green Color machine,can you do it for us?
Q6: Yes,please give us the color sample.So we can do it for you.
